Application
TO PREVENT FLAME FROM PROPAGATING INSIDE THE STORAGE AND TRANSPORTATION SYSTEMS CARRYING FLAMMABLE LIQUID. THESE ARRESTERS ARE DESIGNED TO QUENCH THE FLAME AND PREVENT FIRE PENETRATION, EXPLOSION OR DETONATION IN THE SYSTEM
KINGSLEY FLAME ARRESTORS
BRAND: KINGSLEY

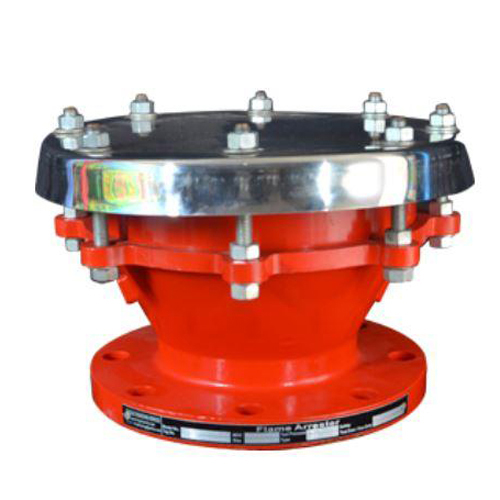

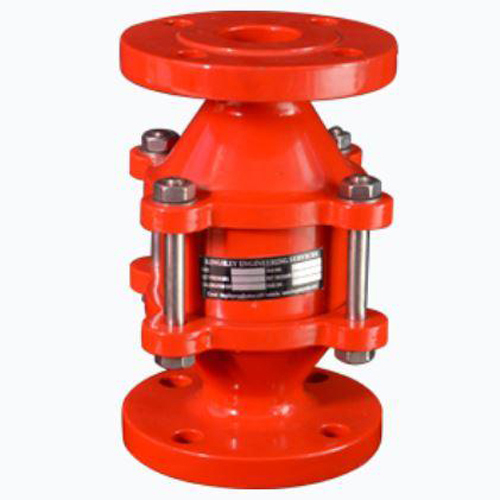

TYPE: END LINE/ IN LINE
SIZE: 15 NB TO 300 NB
BODY MATERIAL: CAST AL LM6, CAST STEEL ASTM A 216 WCB/ A351 CF8/ A351 CF8M, HASTELLOY, PTFE LINED
BANK ELEMENT: SS 304, SS 316, HASTELLOY-C
GASKET:CAF, PTFE, FEP, METALLIC SPIRAL WOUND GRAPHITE
BANK SHELL: CAST STEEL, SS 304, SS 316, HASTELLOY-C, A 351 CF8/CF8M
NUT BOLTS: M.S ZINC PLATED, ASTM A 193 B7/B8, A 351 CF8/CF8M
Features
- Designed, manufactured & tested in accordance with various National & International standards such as BS 7244, EN 12874, ISO 16852, API 2000, IS 11006.
- Kingsley Flame Arresters consist of a flame element made up of a corrugated metallic sheet tightly packed in the outer body providing a uniform Maximum Experimental Safe Gap for the effective protection against flame.
