Application
1.To control the flow of palm oil mill effluent or biogas.
2. For auto shut off before burner

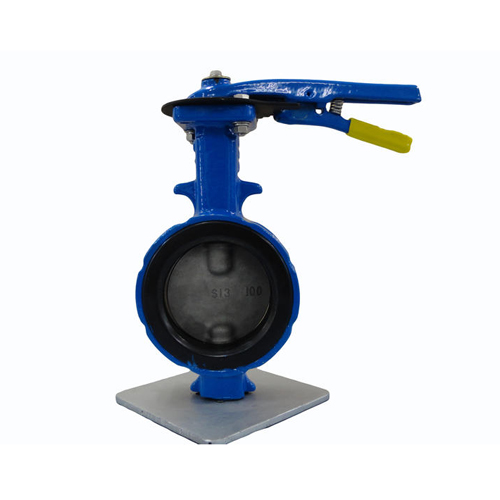

OKM 612X/615X BUTTERFLY VALVE (EPOXY COATING)
BRAND: OKM
MODEL: 612XC/615XC
NOMINAL SIZE: 40-300MM/ 350-1200
MM BODY: DUCTILE IRON/ CAST IRON
DISC: SS304/SS316
STEM: SUS420 J2
SEAT RING: EPDM(CHEMICAL RESISTANT) NBR (OIL RESISTANT)
FLANGE: JIS 5K, 10K ASME/ANSI 125LB, 150LB
MAX. SERVICE PRESSURE: 10
BAR MAX. SERVICE TEMPERATURE: 0-120 DEGREES C
APPLICATION: BIOGAS
Features
1. Sand blasted and fusion bonded powder epoxy coating for biogas application.
