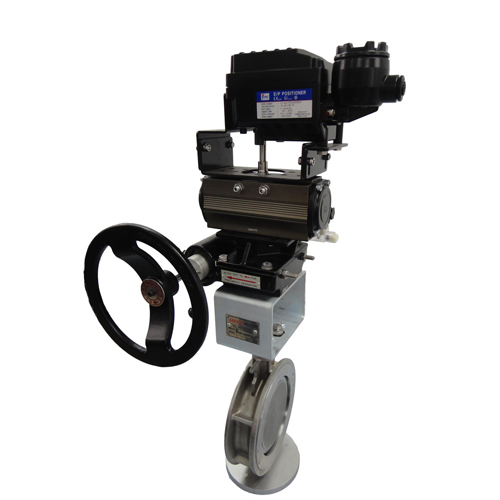

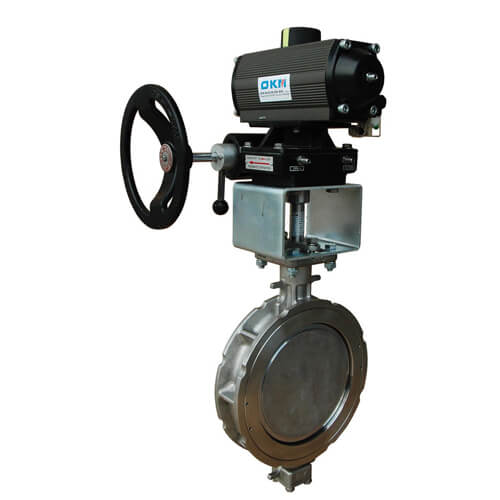

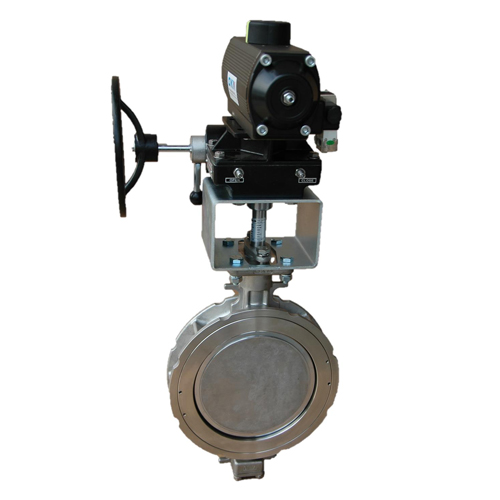

MODEL: 54TP/54MP
NOMINAL SIZE: 80-300MM
BODY/DISC: SCS13A
STEM: SCS630
SEAT RING: PTFE(WHITE)PTFE(BLACK)/SCS14
FLANGE: JIS5K/JIS10K
MAXIMUM PRESSURE: 10 BARS
MAXIMUM TEMPERATURE: -50-230 DEGREES C
• Cooling water, air, gases, fire protection etc.
• Slurry and similar services
• Vacuum services
• High-pressure and high-temperature water and steam services
• Compressed Air or Gas Applications
• Palm Oil
1. Sterilizer Steam Exhaust Valve
2. Sterilizer Steam Inlet Valve
3. Sterilizer Condensate Valve
1. Self-sealing mechanism for tight shutoff.
2. Double eccentric disc for longer service life, low seating torque and leak-tight shutoff.
3. Actuator: Lever, Worm-Gear, Pneumatic-Cylinder, Electric-Motor
