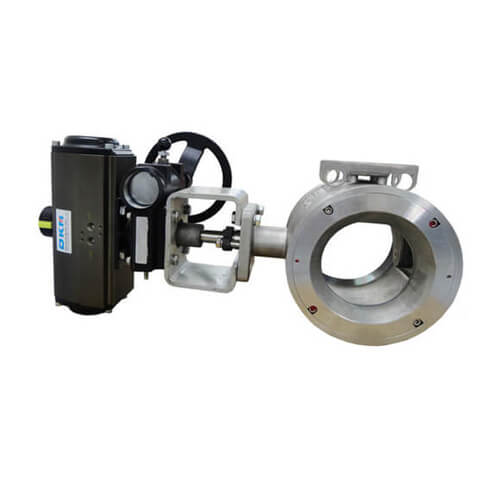

MODEL: 54HM HYBRID VALVE
NOMINAL SIZE: 6″/ 8″/ 10″
BODY/DISC: SCS13
STEM: SUS630
SEAT RING: SUS304
FLANGE: JIS 10K/ANSI
MAXIMUM TEMPERATURE: -50-230 DEGREE C
MAXIMUM PRESSURE: 0.5MPA
ACTUATOR MIN. AIR SUPPLY: 6 BAR
Application:
• Refining
• Industrial Gases
• Pulp and Paper
• HVAC
• Water and Wastewater
• Chemical and Petrochemical
• Palm Oil
1. High performance valves for sterilizer system.
2. Specially designed for heavy duty service at sterilizer condensate process.
3. Application in condensate process at sterilizer system.
High Durability
Hybrid Valve is wear-resistant against abrasive flow media.
Solid Seat Ring
OKM original seat ring has high wear resistance and seal performance.
Disc Performance
When in full opened position, disc is parallel with flow direction and not damaged by the abrasive flow media.
Double Eccentric Structure
Double eccentricity of the disc ensures longer service life, low seating torque and leak shut off.
