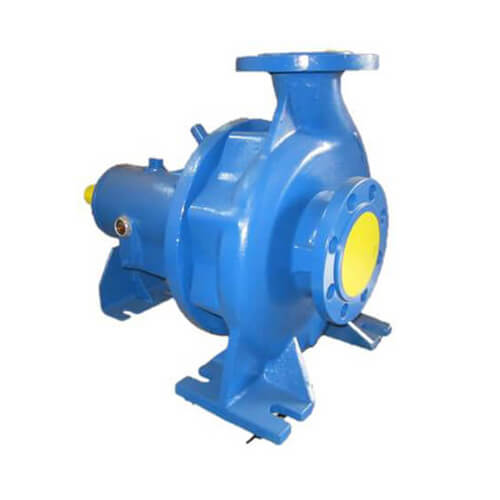

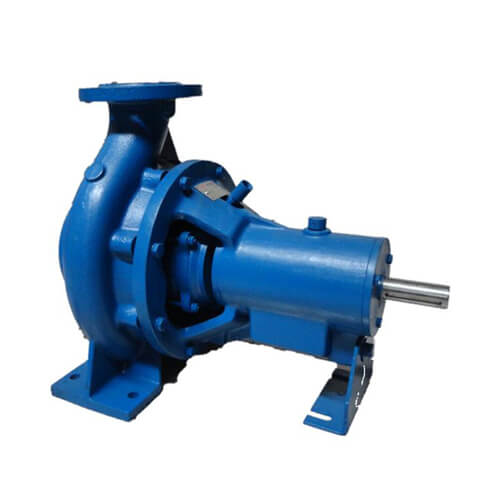

SPNC DEAERATOR PUMP

BRAND: SP PUMP
MODEL: SPNC
MATERIAL: CI/CI/SS*
SEALING: MECHANICAL SEAL
WORKING TEMPERATURE: 120 DEGREES C
FLOW RATE: 10-100M3/HR
PUMP HEAD: 5-25M
MAX. WORKING PRESSURE: 16 BAR
PUMP SPEED: 1450RPM, 1750RPM

Categories: ,

Application

  1. ​Vacuum deaerator extraction of hot water
  2. Basic process engineering
  3. Chemical Industry

Features

  1. Designed for delivery and recirculation of liquids at unfavorable suction-side conditions and liquids close to boiling point.
  2. Suitable for liquids without abrasive contamination and without solid content.
  3. ​Shaft sealing with mechanical seal.
  4. Volute casing in cast iron with nominal pressure PN16.
  5. Common model consists of SPNC 65-250, SPNC 80-250.

* all stainless-steel model available upon request.
