Application
- Water transfer or boosting
- Fire fighting
- Air Conditioning
- Chillers
- Irrigation
- Recirculation
- General Applications

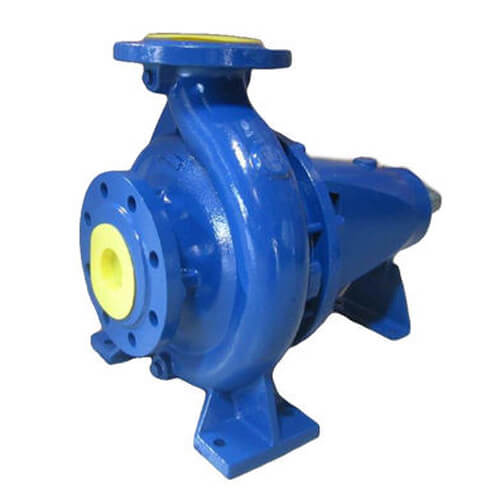

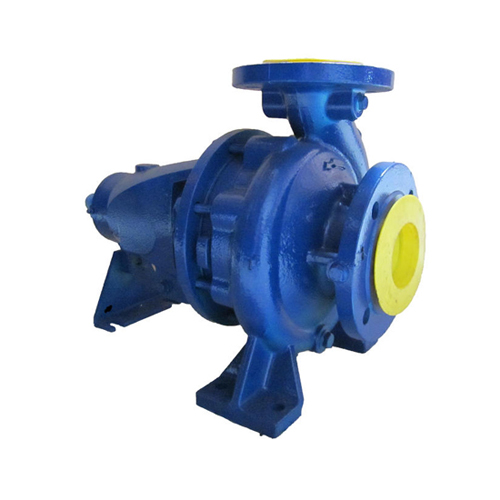

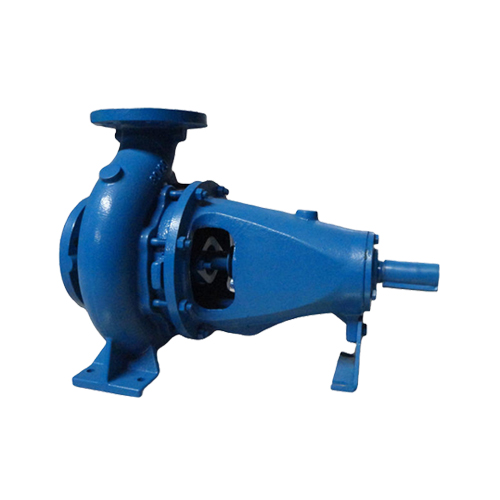

SPV CENTRIFUGAL END SUCTION PUMP
BRAND: SP PUMP
MODEL: SPV
IMPELLER TYPE:CLOSED IMPELLER
MATERIAL: CI/CI/SS420*
SEALING: MECHANICAL SEAL
WORKING TEMPERATURE: 105 DEGREES C (DEPENDING ON SEAL)
FLOW RATE: 3-2200M3/HR
PUMP HEAD: 3-150M
MAX. WORKING PRESSURE: 16 BAR
PUMP SPEED: 1450RPM, 2900 RPM
APPLICATION: WATER TRANSFER OR BOOSTING
Features
- Volute casing in cast iron of stainless steel with nominal pressure PN16
- Back pull out design- single entry centrifugal pumps with volute casing in process design.
* All stainless steel model available upon request.
